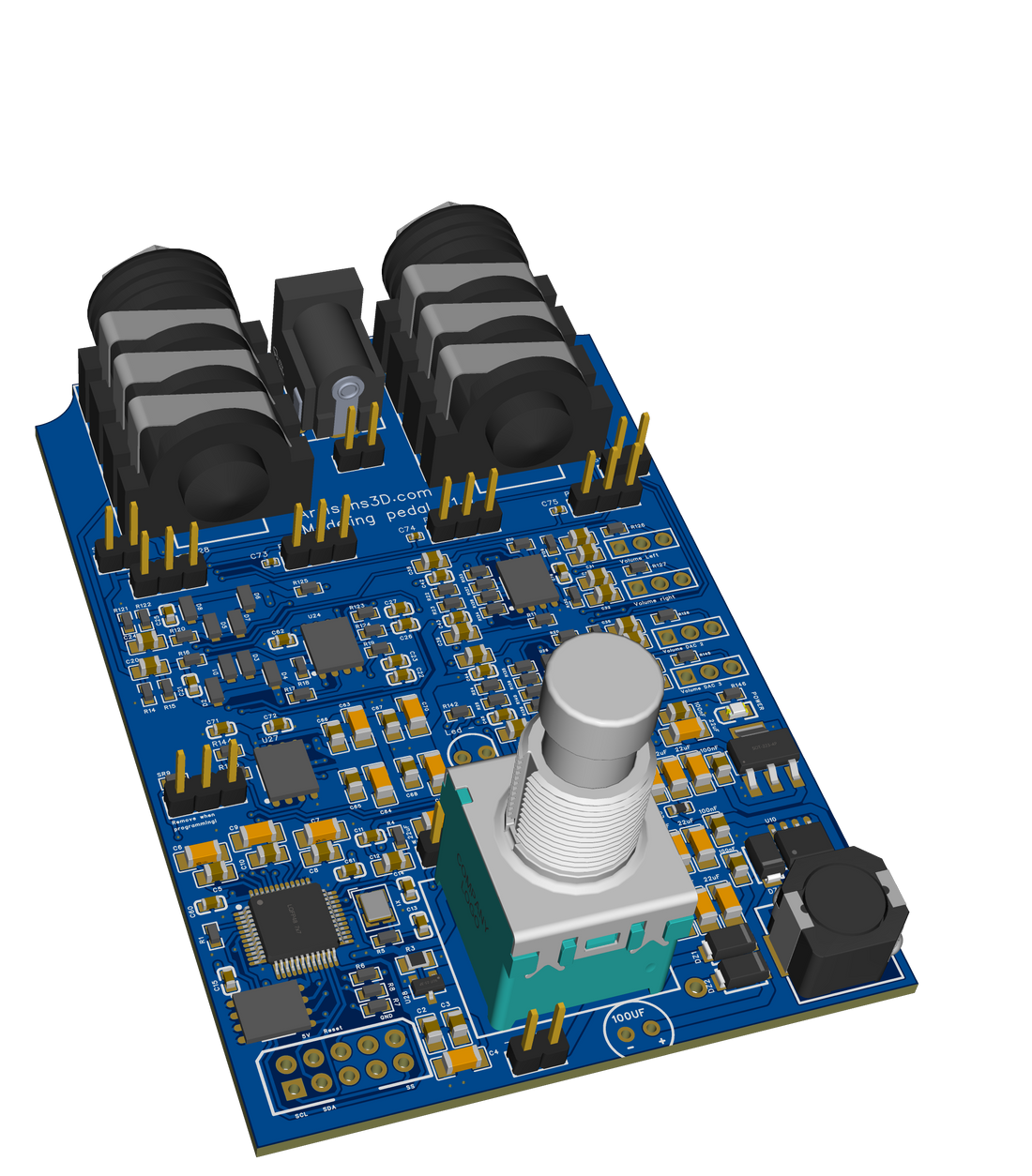

A Universal Modeling Guitar Pedal Built on ADAU1701
Share
This pedal is a programmable guitar effect platform built around the ADAU1701 DSP. It is designed as a consumer modeling product with a different internal philosophy than most commercial modeling pedals. The same hardware can be sold as a blank, user-programmable unit or as a preprogrammed pedal with a fixed sound and behavior.
The project started from a practical limitation of traditional pedals. Analog designs are usually optimized for a single effect, and extending or modifying them requires hardware changes. Many digital pedals solve this by hiding the signal path behind presets, menus, and software layers. This design takes a different approach: a fixed hardware platform where the sound is defined entirely by the DSP configuration loaded into the pedal.
The ADAU1701 is used as a dedicated audio processor running a single DSP program stored in non-volatile memory. At power-up, the pedal boots directly into that program and operates deterministically, with fixed latency and no runtime configuration. From the user’s point of view, it behaves like a normal stompbox.
In this context, “universal modeling” means that the pedal itself is not tied to a specific effect. The modeling happens at the signal-path level. A pedal sold as a compressor, tremolo, distortion, or fuzz can all be the same hardware, differing only in the DSP program flashed during production. For users who want to go further, the same pedal can be reprogrammed to implement different effects later.
Programming is done using SigmaStudio. Signal chains are designed graphically and written to the pedal’s memory. For end users buying a preprogrammed pedal, this process is invisible. For advanced users, it provides full control over the internal structure of the effect without requiring hardware changes.
The analog input and output stages are designed for standard guitar pedal signal levels and integration with typical pedalboards and amplifiers. Power, grounding, and buffering are treated as part of the audio design, not as auxiliary details. The physical interface remains simple, with controls mapped directly into the DSP rather than layered user interfaces.
This pedal is intended both for musicians who want a straightforward, ready-to-use modeling pedal and for users who want the option to reprogram or repurpose the hardware later. It can be treated as a finished consumer product or as a flexible platform, depending on how it is configured and sold.
